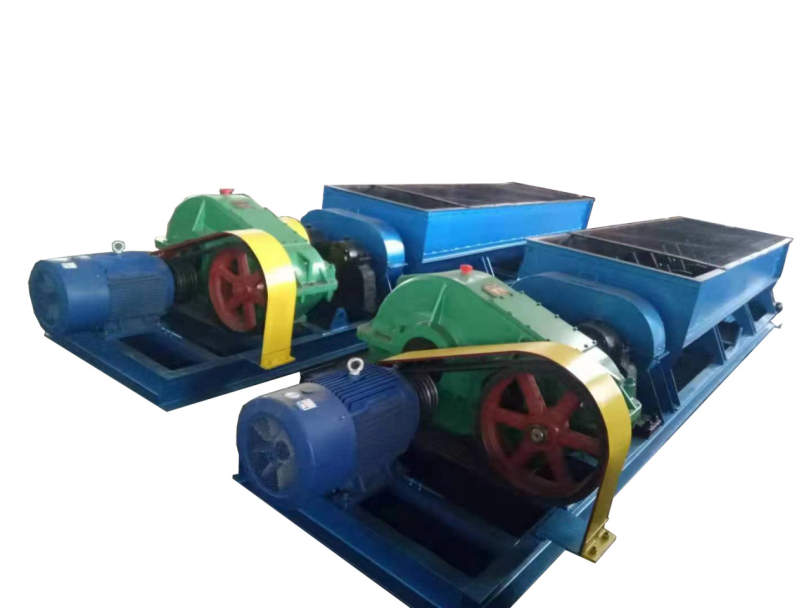

  • Product Name: Horizontal Mixer
  • Product Categories: Horizontal Mixer
  • Company Name: Zhengzhou Great Wall Metallurgical Equipment Co., Ltd.
  • Phone number: +86-371-68925834
  • Contact Address: East Section of Shangjie Central Road, Xingyang City, Zhengzhou, Henan Province
Product Details
Product Inquiries
Concrete and Construction‌
‌Twin-shaft mixer: Suitable for mixing dry, stiff concrete, it offers high mixing efficiency and clean discharge, and is commonly used in concrete batching plants, high-speed rail projects, and water conservancy projects.
‌Single-shaft mixer: Compact in design, suitable for construction research institutions, laboratories, and small construction sites; capable of mixing ordinary concrete and mortar.
‌Horizontal mortar mixer: Specifically designed for mixing dry-mix mortar, joint compound, and masonry mortar; typically has a small capacity (e.g., 15 L) and is suitable for testing and inspection.‌‌
‌Chemicals and Powders‌
‌Horizontal Screw-Belt Mixer: Features inner and outer double-layer screw belts rotating in opposite directions, making it suitable for putty paste, natural stone paint, and dry-mix mortar, and providing excellent mixing results for viscous materials.
‌Horizontal Dry Powder Mixer: Widely used in the chemical, feed, and ceramics industries, it ensures high mixing uniformity and minimal residue.


Mechanical transmission enables three-dimensional movement of the material, ensuring uniform mixing:

‌Convection Circulation Mechanism: The motor drives the agitator shaft to rotate, and the blades (such as screw blades or paddles) push the material from both ends toward the center or from the center toward both ends, creating axial and radial circulation and agitation.
‌Core Components:
‌Drive System: Typically, a cycloidal pinwheel reducer or gear reducer is used to ensure smooth operation and low noise levels.
‌Agitation Assembly: Available in single-shaft or double-shaft configurations, with blade shapes including spiral, fan-shaped, or S-shaped, and made of either wear-resistant manganese steel or stainless steel.
‌Sealing and Discharge: The shaft seal uses a special seal to prevent leakage. Discharge options include a pneumatic swing gate valve, a manual discharge gate, or a hydraulic discharge gate, ensuring minimal residual material.
‌Technical Update: The new equipment features anti-caking and filtration components to prevent material adhesion and supports microcomputer control for automated production.
